Voici le
compte-rendu du Jubilee Katana !
Here
is the report on the Katana Jubilee !
Organisation
: Erich Walitsch
8-10
septembre
2006
Seefeld,
Deutschland & Eggenburg, Östereich
Cet
évènement a eu lieu entre Seefeld, dans les locaux
de Target Design, et Eggenburg, au musée de la moto
Ehn. Monsieur Hans Georg Kasten (fondateur de Target
Design avec Jan Fellström et Hans Arthur Muth) a proposé
à Monsieur Friedrich Ehn, propriétaire du musée de la moto
où est hébergé ED-2, de restaurer la maquette qui
avait souffert des expositions internationales et de
ses 25 ans d'inactivité. Il était organisé par Erich
Walitsch, bien connu des fans de Jochen Rindt pour son
activité d'historien ! The
event was held between Seefeld, home of Target Design,
and Eggenburg, at the Ehn Motorcycle Museum. Mister
Hans Georg Kasten (founder of Target Design with Jan
Fellström and Hans Arthur Muth) offered Mister Friedrich
Ehn, owner of the Austrian Motorcyle Museum and ED-2
prototype, to restore the model which had suffered with
the international exhibitions and lack of use. It was
organised by Erich Walitsch, well known among the Jochen
Rindt fans for his historian activities !
Hans
Georg Kasten, Alexandre votre serviteur, Erich Walitsch
l'organisateur et Friedrich Ehn saluant le KOC Japonais
entre ED-2 et la MV Agusta contemporaine ! Hans
Georg Kasten, Alexandre (that's me ;-), Erich Walitsch the
organiser and Friedrich Ehn saluting the Japanese KOC
between ED-2 and the period MV Agusta !

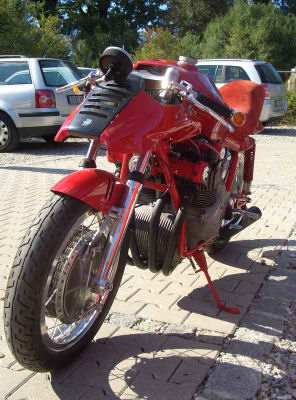

MV Agusta
que son propriétaire nous a fait l'honneur d'exposer
avec ED-2 pour fêter le Jubilee de la Katana ! The
MV Agusta was kindly exposed with ED-2 by its owner
to celebrate the Katana and Target Design Jubilee !
Les
participants avec ED-2 ramenée au musée de la moto qui
est son domicile en Autriche. Coucou le Katana Stammtisch
Münich ! The
Attendants with ED-2 back to the Ehn Motorcycle Museum
in Austria. Hello Katana Stammtisch München !

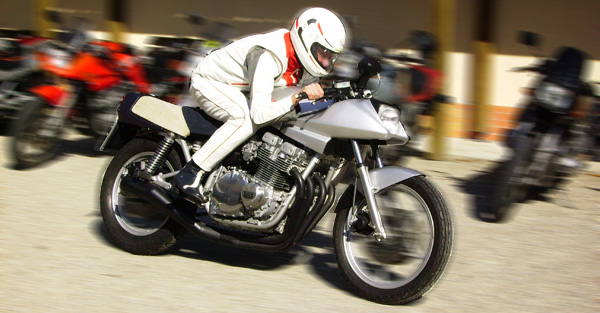

André
en pleine accélération avec ED-2 et la fabuleuse tenue Katana
d'époque ! André
racing with ED-2 in his fabulous period Katana riding
suit !
Rencontrer
Hans Georg Kasten fur un grand moment ! Nous avons pu
discuter de la genèse de la Katana. Taget fut commissionné
en 1979 pour créer ED-1 sur la base d'une "fade"
GS550. Puis Suzuki a réclamé une moto plus grosse à
paraître en même temps - une erreur, selon M. Kasten,
car le style des 550/650 fut édulcoré en production
au bénéfice de la 1100, lui retirant le "wow
factor" et l'effet de gamme que cela aurait
créé. Meeting
Hans Jörg Kasten was a great moment ! We could discuss
about the genesis of the Katana : Target Design was
commissioned in 1979 to create ED-1 on the basis of
a "boring" GS550. Then Suzuki asked for a
bigger version to appear simultaneously on the market -
an error according to Mr. Kasten, as the 550/650 styling
went into production with tamer features compared to
the 1100, and thus did not really benefit from the
wow factor of the target styling and the eventual "range
effect" that was attainable.

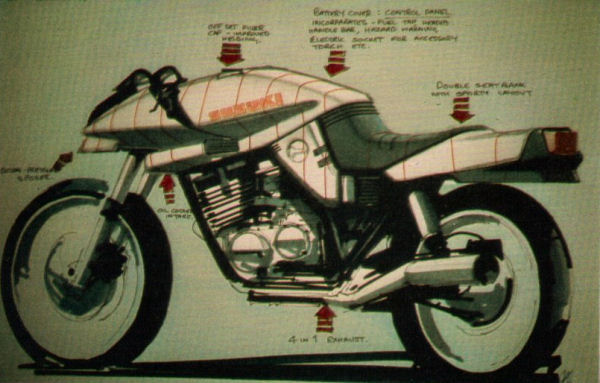

Je me suis rendu chez
target avec ma "phare escamotable", ce qui
m'a permis de demander à M. Kasten son opinion sur cette
moto dessinée au Japon en imitant le style Target :
il a déclaré que c'était une belle moto "mais qu'ils
n'ont rien compris au concept !". En effet, l'idée
de base du style Katana était un sens pratique très
allemand. Ainsi les ventilations étaient conçues pour
améliorer l'écoulement des flux du radiateur d'huile
(annulé en production), comme la forme du réservoir et de
la selle intégraient le pilote dans la moto, et non
"dessus" comme c'était la norme à l'époque.
La forme "propre", les coloris "simples",
le bouton de starter latéral, étaient aussi plus économiques
à produire. La "New Katana" était moins minimaliste
et orientée sport, et le phare escamotable était un
gadget - mais quel joli gadget ! I
came with my own pop-up Katana, and I asked Mr Kasten
for his opinion on this bike that was designed
in Japan and which try to replicate the target styling
: he agreed that it is a nice bike... "but they
did not understand the concept !". Indeed the base
idea of the Katana design was a very German sense of
purpose. So the vents on the bikes where meant to improve
cooling of the oil radiator (that was to be fitted to
the bike, but cancelled in production), just as the shape of
the fuel tank and seat was meant to integrated the pilot
in the bike, instead of installing him "on" the bike like
was the norm then. The clean shape, simple colour scheme,
side-mounted choke button also had the benefit of being
more economical to produce. The "New Katana" was less
minimalist and sports oriented, and the heavy headlamp
installation was a gadget - but what a nice gadget ;-)

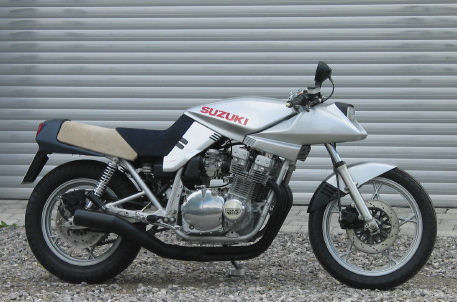

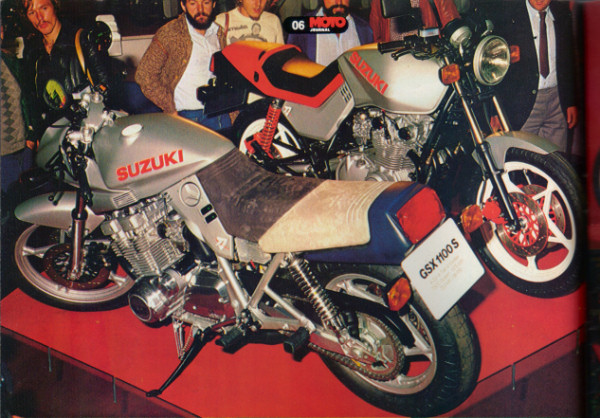

En regardant ED-2 de
près, on constate que la 1100 a peu perdu du prototype
à la production : le phare a été légèrement réhaussé
pour répondre aux normes, la selle est devenue monocoque
et plus longue (plus facile à produire et usage du cadre
GSX standard), le réservoir est plus grand (autonomie)
et le petit saute-vent protège mieux que le bloc d'instruments.
Ce dernier est réhaussé sur le prototype, tout simplement
d'après M. Kasten "parce que c'était plus joli
!". La séparation vert/noir des fonctions tachymètre
et compte-tours était conçue pour faciliter leur
lecture. Looking
at ED-2 "in the flesh", we could see that
the 1100 Katana lost little from its prototype
shape to production, event though the headlamp had to
be raised a little (legal requirements here), the seat
was built in one piece and made longer (ease of production
using the standard GSX frame), tank was larger (fuel
range) and a little fairing gave a more adequate protection
than the raised instruments. The instrument block was
raised, according to Mr. Kasten, mostly "because
it looked nicer !" - the black/green separation
was meant to help distinguish both speedo and rpm functions
on the block and disappeared in production.

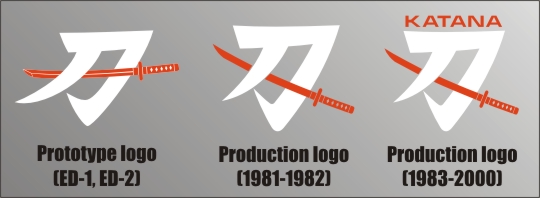

Le désormais célèbre
logo Katana a été créé avec l'aide d'un ami de M. Kasten
qui travaillait chez Mitsubishi. Il a dessiné le symbole
en kanji quand M. Kasten lui a demandé à quoi ressemblait
le mot Katana en Japonais. L'équipe de Target considérait
que la moto devait avoir un nom japonais, exprimant
son origine, et que les japonais devaient être fiers
de leurs produits - alors qu'à l'époque ils étaient
plutôt réputés copier les machines des autres ! C'est
par un curieux tour du destin qu'un studio étranger
a ainsi donné confiance à Suzuki pour lancer un produit
qui criait sa fierté. D'ailleurs le jour
où M. Kasten a retité le drap du premier prototype devant
la direction de Suzuki, tous se sont écrié en choeur
grâce au logo : "KATANA !!!". C'est probalement
une des raisons du succès de la Katana au Japon, car
le Katana est l'épée du samouraï, et l'âme du guerrier.
Il est amusant de constater que le logo n'a pas été
aposé sur les motos du marché japonais avant 1987, car
il n'était pas "politiquement correct" ! Rappelez-vous
qu'après la 2e guerre mondiale, les américains exigèrent
la destruction des sabres japonais, en n'autorisant
la conservation que des modèles de collection. The
now famous Katana logo was created wih the help from
a friend who was working at Mitsubushi, who drew the
Kanji symbol when Mr. Kasten asked him how the
word Katana would look like in Japanese. The design
team at Target felt the bike should have a Japanese
name, expressing its origin, and that the Japanese
should be proud of their product - at the time their
reputation was that they could only make copies ! It
is a funny trick of history that it is a foreign design
studio that gave Suzuki the confidence to launch a product
which shouted confidence and pride. By the way, the
day Mr. Kasten first showed the prototype to the Suzuki
management, the Japanese all shouted together "KATANA
!"
thanks to the logo. This probably partly explains the
success of the Katana range in Japan. The Katana is
the sword of the samuraï, and the soul of the warrior.
Funnily enough, the Katana logo was not used on Japanese
bikes until 1987, as it was not deemed politically correct
on the local market ! Remember that after WWII, the
USA demanded all Japanese sword to be destroyed and
only those of historical value were allowed to be kept
as museum pieces.
Aujourd'hui, le seul
regret de M. Kasten est que c'est Hans A. Muth qui a bénéficié
de la plus grosse reconnaissance médiatique pour le style
Katana. M. Kasten aimerait que l'histoire se souvienne
que 3 personnes ont fondé Target Design ensemble, et
qu'elles furent toutes impliquées dans le processus
créatif : Hans G. Kasten, Hans A. Muth & Jan Fellström
ci-dessus ! Today,
Mr. Kasten only regret about the Katana is that Hans
A. Muth got most of the fame for the Katana styling.
Mr. Kasten would like history to remember that 3 persons
founded Target Design together, and all 3 were
involved in the creative process : Hans G. Kasten,
Hans A. Muth & Jan Fellström above !
Rencontrer
M. Ehn fut aussi super sympa, car Friedrich est un vrai
motard - entouré de gars plus jeunes que lui, il restait
la vedette de la tablée et racontait les mêmes anecdotes
que nous vivons tous sur nos bécanes ! Je vous recommande
hautement la visite du Musée
de la Moto d'Eggenburg
car sa collection est fantastique : une impressionnante
collection de Puch, des cyclos et des scoots, les fameuses
Vincent Black Shadow et Brough Superior, même une

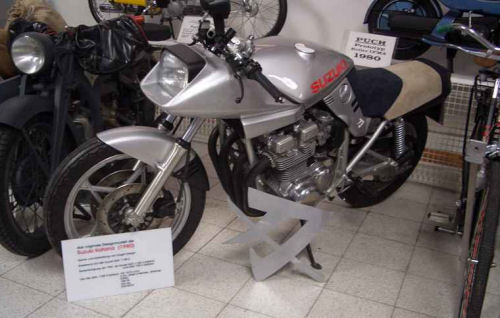

Suzuki XN85 Turbo et une Honda RC30... Wow ! Remarquez
au passage le superbe emblème en acier devant ED-2
: c'est Bruce qui les fabrique en découpe au plasma,
si vous êtes intéressés, faites-le moi savoir car il
est prêt à en fabriquer d'autres ! Meeting
M. Ehn also was a great time, as Friedrich is a real
biker - among all the younger guys, he was the star
at our table ans had lived the same stories as us on
2 wheels ! I highly recommend you visit the Eggenburg
Motorrad Museum
as his collection is fantastic : an impressive collection
of Puch bikes, loads of mopeds and scooters, the famous
Vincent Blask Shadow and Brough Superior, even a Suzuki
XN85 Turbo and a Honda RC30... Wow ! By the way note
the superb emblem in front of ED-2 : it was made by
Bruce in the USA, who cuts steel with plasma - if you're
interested in getting one, let me know as he can make
more !
Note : some pictures above by Erich Walitsch !
|
